How to Customize or Change the Welcome Screen Background in Windows 7


At last! Microsoft allowed and added the feature that lets you change the Logon Background in Windows 7 easily…. Using the Registry or Group Policy Editor, You can now activate function.

Third-Party Software:


WinBubbles Lite 2009 includes a small version that will customize your Welcome screen easily in Windows 7. Just Click the PictureBox to Change, Click to Checked the “Activate First” option and press Alt-A. That’s it!

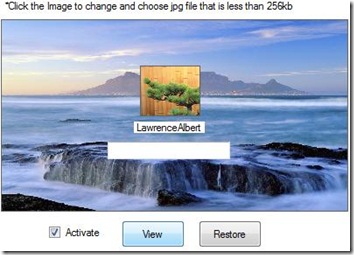

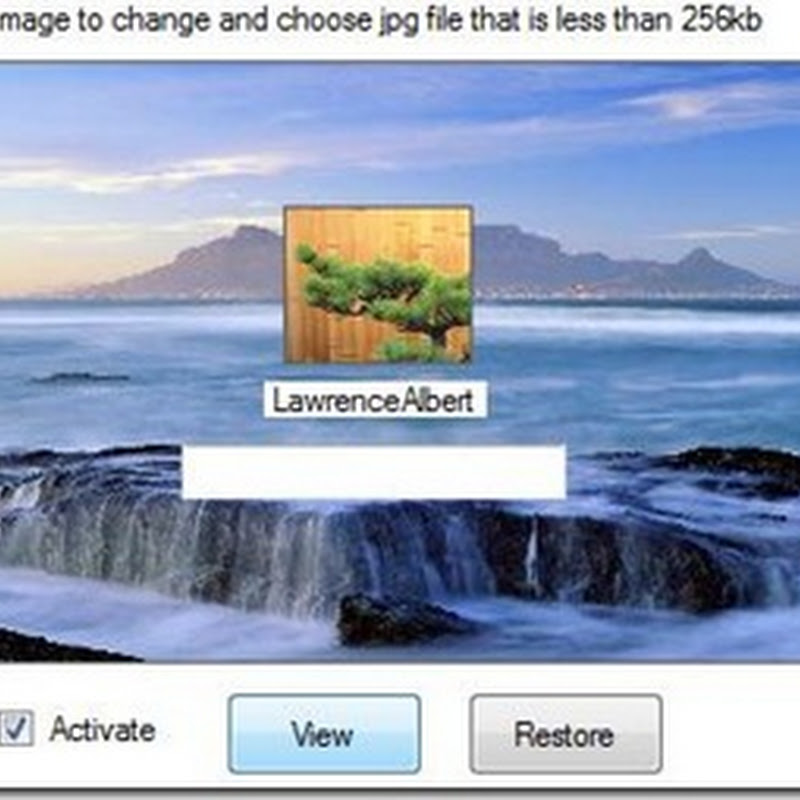

It was created using RegDevelop, like the screenshot above.

Geek Way:

Activation via Group Policy Editor Setting:


We will notice that it uses UseOEMBackground Value Name

Registry Key: HKEY_LOCAL_MACHINE\Software\Policies\Microsoft\Windows\System

Just Add and Set the Value Name to 1 (DWORD)

If your Windows Directory is C:\Windows, Add/Put a jpeg file here:


The  image must be less than 256kb. Just resize your jpeg files using ms paint, Gimp or Photoshop.

TIP: Checkout C:\Windows\Globalization\MCT\ for high resolution and amazing backgrounds… it’s FREE!!!

Creating Your Own Customization Software for the Tip:

My latest software RegDevelop, which let’s you create a Customization Software that can be edited and shared by everybody does the job very well.

If you want to learn more about the software, I recommend this design


Now you can create a Program to change it Safe and automatically…

Anyway, Using RegDevelop needs practice. maybe after 2-3 examples, you can do it fast without instructions.

Designing The User Interface

1. Drag a PictureBox. It will correspond to the User Account Picture because it is located in front of other controls.

2. Drag a Label Control and TextBox and arrange it according to your taste (The two are just dummy, for UI design only). You can change the Caption of the Label to any name that you want.

3. Add a CheckBox and Two Button Control. Change the Caption of the Two Button (“View” and “Restore”)

4. Finally, Add the Big PictureBox that corresponds to the Welcome Screen Background.


PictureBox2 (The most important)

Mode 2: Open From File Location



View and Set

PictureBox1 (For User Account Picture only…)

Mode 2: Open From File Location


any Bitmap or try this:

PictureBoxStyle is set to View

CheckBox1 (Activation CheckBox Setting)




ValueName1 UseOEMBackground
DataValue1 1
ValueType1 DWORD
DeleteWhenUnchecked True


StartProcess rundll32.exe user32.dll, LockWorkStation
WindowStyle Normal
Caption View


StartProcess {PictureBox2} /r
Caption Restore

{ControlName} /r – restore the backup when the program was opened for the first time to a specified Control (e.g. PictureBox2)

That’s it! You have created a Logo Changer Third Party Software For Windows 7.

Tiny but Powerful Rapid Application Development software right?

You can make any custom light weight versions that will focus on what you want and what you need.

You can read more here: RegDevelop Introduction and functions

Most of the Websites said Mr. Rafael of found the registry tip. The registry setting is different but Thanks and good job…
